Create Cloud RADIUS Network Policies that Uses Entra ID Passwords

Prerequisites

  1. Registering the application in your tenant
  2. Creating Cloud Radius Instance
  3. Being a Subscription Owner or Network Administrator

How to Create Cloud RADIUS For Entra ID Password Authentication - Video Tutorial

Introduction - Managing your Cloud RADIUS Network Policies in EZRADIUS

Network policies are used to define the conditions under which a user or device can connect to your network. In this page we will go through how to create network policies in EZRADIUS.

  1. Go to your EZRADIUS portal.
  2. Click on “Policies”. EZRADIUS Cloud RADIUS Network Policies

What are the RADIUS Server Details?

At the top of the page, you will see the server details. These are the details that you will need to connect to the cloud RADIUS service. EZRADIUS offers two different ways to connect “Regular” RADIUS (which is over port 1812 for Authentication and port 1813 for Accounting), and radsec (RADIUS over TLS) (which uses port 2083). Depending on which one you are using you will need different the different server details that are in this section. Note: while the Radsec Section only has a url, you can use an IP address for the Radsec server if your firewall does not support SNI. EZRADIUS Cloud RADIUS Server Details

Create a new RADIUS Network Policy

Before we dive into creating a new RADIUS network policy, let’s understand the different components of a network policy. Each policy has the following components:

  1. Name: A unique name for the policy.
  2. Radsec Accepted Certificate Authorities or Certificates: The certificate authorities and/or certificates that are accepted for the Radsec authentication. These certificates authorities and/or certificates will be used to authenticate your networking infrastructure to our cloud RADIUS with Radsec.
  3. Classic RADIUS: The IP addresses that are allowed to connect to your Cloud RADIUS server (these are the Public IP addresses of your access points).
  4. Accepted Certificate Authorities: The certificate authorities that are accepted by the RADIUS server. These CAs are used to validate the certificates of the devices connecting to the network.
  5. Server Certificate: EAP-TLS requires the server uses a certificate that the devices trust for identification of the server. This is the server certificate.
  6. Access Policies: The conditions under which a user or device can connect to your network. This includes the authentication methods, the network policies, and the user groups that are allowed to connect as well as VLAN rule assignment. Each policy can have multiple access policies and they are checked in the order they are sorted.

Now that we understand the components of a network policy, let’s create a new policy.

Set up a new RADIUS Network Policy

First we must set the policy Name. Enter the Policy name.

Enable Radsec and/or Classic RADIUS

Next we have to enable which authentication methods you are going to use, you can use Radsec, Classic RADIUS, or both.

How to Set Up Radsec for Cloud RADIUS

If you enabled Radsec, you have to add a certificate authority or certificate that is accepted by the RADIUS server. This is dependant on your networking device (for example, if you are using a Cisco device, you will need to add the Root CA of the certificate that signed the certificate of the device, if you are using a Ubiquiti device, it allows you to upload your own certificate from your CA).

Add Certificate Authorities to Radsec Using EZCA (Option 1)

If your Radsec certificate is issued by your EZCA Certificate Authority, then you can easily add the CA to the cloud RADIUS server by:

  1. Selecting your EZCA instance from the dropdown.
  2. Selecting the CA you want to add to the RADIUS server.
  3. Click “Add CA” to add the CA to the RADIUS server. EZRADIUS Cloud RADIUS Network Policy add EZCA Cloud Certificate Authority CA for Radsec
Add Certificate Authorities to Radsec Using 3rd Party CA (Option 2)

If your device uses a certificate from a 3rd party CA, you can add the CA to the cloud RADIUS server by:

  1. Switching the Certificate Source to “Local CA”.
  2. Uploading the CA certificate in PEM format. EZRADIUS Cloud RADIUS Network Policy add CA from Microsoft Cloud PKI, SCEPMAN, or ADCS for Radsec
Add Self-Signed Certificate to Radsec (Option 3)

If your networking device only does self-sign certificates for Radsec, you can upload the single certificate to your cloud RADIUS policy by:

  1. Entering a Certificate Friendly Name (This is just for your records, useful if have multiple locations).
  2. Uploading the certificate in PEM format. EZRADIUS Cloud RADIUS Network Policy add Self-Signed Certificate for Radsec

How to Set Up RADIUS Authentication for Cloud RADIUS

The other option is to do regular RADIUS authentication over UDP (don’t worry, the credentials are still encrypted by EAP-TLS or EAP-TTLS). If you enabled Classic RADIUS, you have to add the public IP addresses of your locations that are allowed to connect to the RADIUS server.

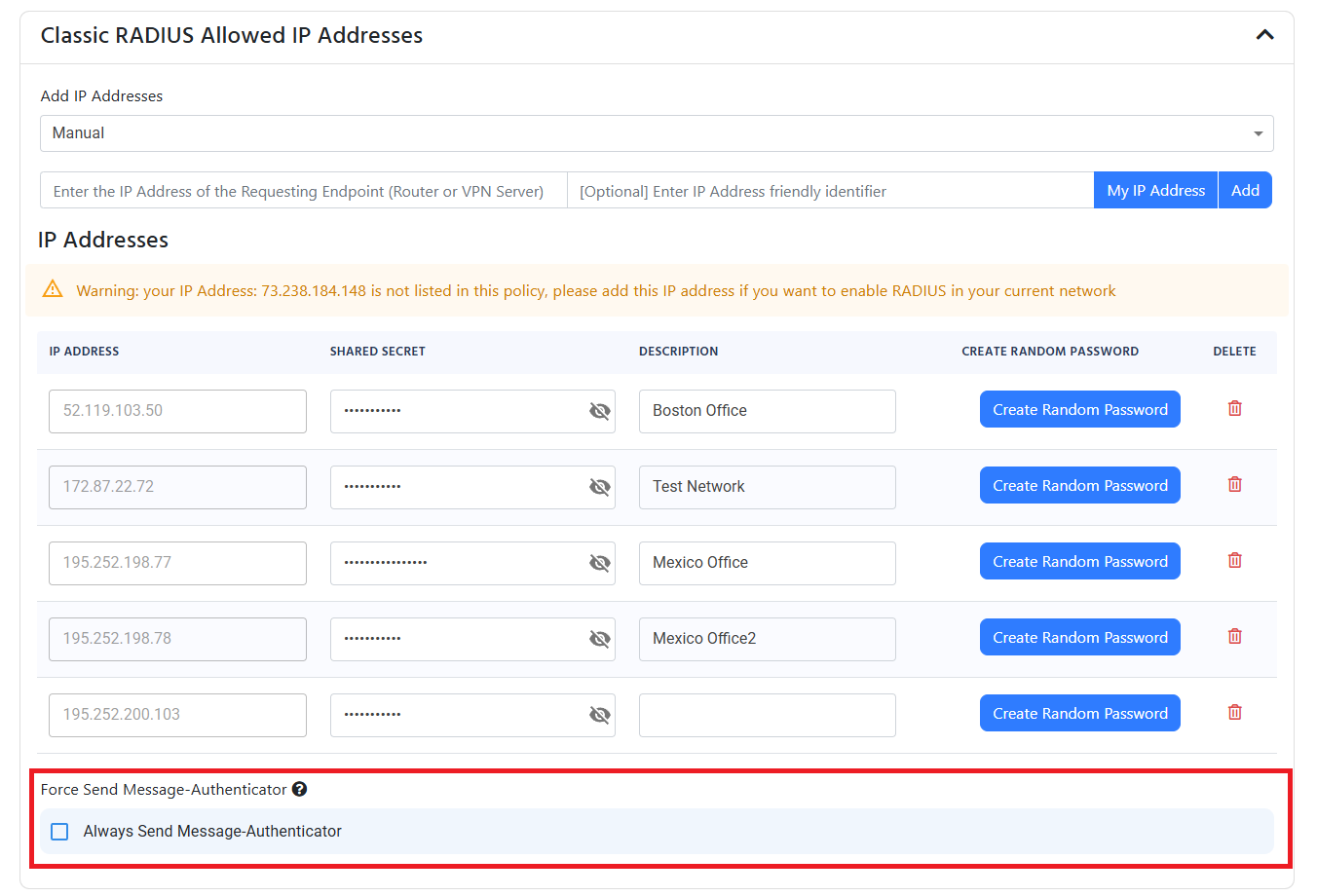

If using Fortinet devices, After Fortigate 7.2.10 you will need to enable the “Always Send Message Authenticator” option in the RADIUS server settings. Fortigate RADIUS Message Authenticator

Add IP Addresses to RADIUS Network Policy (Manually)

This IP address is the external IP address for your network. It should not start with 192.168, 10.0, 172.16, or any other private IP address range.

  1. Enter the IP addresses of your access points by entering the IP Address and entering add. When you click “Add” the IP address will be added to the list of allowed IP addresses and a random shared secret will be created, if you want to change the secret, you can change it in the text field for the shared secret. You will need to configure your network devices with the shared secret. EZRADIUS Cloud RADIUS Network Policy IP Addresses
  2. Now we must add the Certificate Authorities we trust to the RADIUS Service, if you are using EZCA our cloud based Certificate Authority, It is a few clicks away, if you are using a different CA, you can upload the CA certificate in PEM format, below you can see the steps to add the CA using each option.
Add IP Addresses to RADIUS Network Policy (Using CSV)

If you have multiple IP Addresses you can add them using a CSV file (if you have an CIDR range and want to convert it to IP range, use this site). The CSV file must have the following format:

12.12.12.12,friendlyname,SharedSecret1
12.12.12.13,SecondName,SharedSecret2
  1. Once you have your CSV file, select “CSV File Upload” from the dropdown. Cloud RADIUS Multiple IP Addresses Network Policy For Entra ID
  2. And then upload or drag the CSV file to the upload area. Cloud RADIUS Multiple IP Addresses Network Policy For EAP-TTLS with Entra ID

Add Certificate Authorities to RADIUS for Certificate Authentication

If you are only using username and password from Entra ID, please skip this part and move to the server certificate section.

If you are using using Certificate Authentication for some of your users or devices, we must add the Certificate Authorities we trust to the RADIUS Service, if you are using EZCA our cloud based Certificate Authority, It is a few clicks away, if you are using a different CA, you can upload the CA certificate in PEM format, below you can see the steps to add the CA using each option.

Add Certificate Authorities to RADIUS Using EZCA (Option 1)
  1. If you are using EZCA, Ensure that EZCA is set as the certificate source, then from the dropdown select your EZCA instance (If you are using an EZCA private instance select the private instance checkbox and enter your EZCA URL).
  2. You should now have a dropdown with the CAs you have in your EZCA instance, select the CA you want to add to the RADIUS server. EZRADIUS Cloud RADIUS Network Policy add EZCA Cloud Certificate Authority CA
  3. Select the CAs you want to add and click “Add” (If you have a 2 tier hierarchy please add both your Root CA and your Issuing CA). EZCA and EZRADIUS will take care of the rest. EZRADIUS Cloud RADIUS Network Policy add EZCA Cloud Certificate Authority CA
Add Certificate Authorities to RADIUS Using 3rd Party CA (Option 2)
  1. If you are using a 3rd party CA, ensure that “Local CA” is set as the certificate source.
  2. If you are uploading a Root CA, check the “Root CA” checkbox, if you are uploading an Issuing CA, leave the checkbox unchecked.
  3. Click on “Upload Certificate” and select the CA certificate in PEM format. EZRADIUS Cloud RADIUS Network Policy add CA from Microsoft Cloud PKI, SCEPMAN, or ADCS
  4. Repeat the process for all the CAs you want to add (If you have a 2 tier hierarchy please add both your Root CA and your Issuing CA).

Add Server Certificate to RADIUS

The Next step is to add the server certificate to the RADIUS server. This certificate is used to identify the RADIUS server to the devices connecting to the network. For this, you can use a certificate from EZCA or a 3rd party CA. Below you can see the steps to add the server certificate using each option.

Add Server Certificate to RADIUS Using EZCA (Option 1)

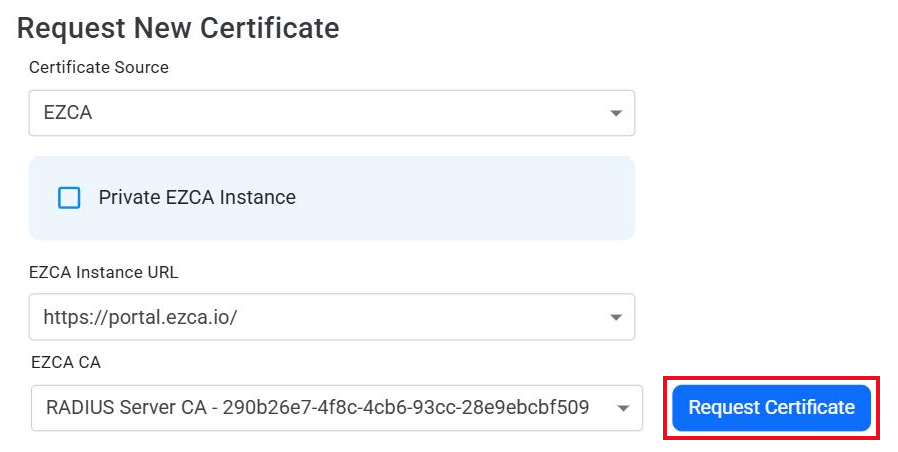

  1. If you are using EZCA, Ensure that EZCA is set as the certificate source, then from the dropdown select your EZCA instance (If you are using an EZCA private instance select the private instance checkbox and enter your EZCA URL).
  2. You should now have a dropdown with the certificates authorities you have in your EZCA instance, select the CA you want to use.

    EZRADIUS will connect to EZCA and create the certificate. This certificate will be automatically renewed by EZRADIUS.

  3. Click “Add” to add the certificate to the RADIUS server. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
  4. You should now see the certificate in the list of certificates. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
Create a Free Certificate with Integrated Certificate Authority (Option 2)
  1. If you do not have a your own CA, you can use the integrated CA to create a free certificate.
  2. Select “Auto-Generated Certificate” from the Certificate Source dropdown. Automatic Certificate Creation for RADIUS
Add Server Certificate to RADIUS Using 3rd Party CA (Option 3)
  1. If you are using a 3rd party CA, ensure that “Local CA” is set as the certificate source.
  2. Click the Create CSR button. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
  3. Download the CSR by clicking the “Save CSR” button. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
  4. Submit the CSR to your CA and download the certificate and the certificate of your root CA.
  5. Once you have the certificate, scroll down and either copy and paste the certificate PEM content or click on “Upload Certificate” and select the certificate in PEM format. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
  6. After you upload your certificate, you must upload the certificate of the Root CA that signed the certificate. Scroll down and either copy and paste the certificate PEM content or click on “Upload Root CA Certificate” and select the certificate in PEM format. EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS
  7. Now that you have added both the server certificate and the root CA certificate, we can move on to creating the access policies. (Please note that this has not been saved yet, we must add the access policies and click save to save the policy.) EZRADIUS Cloud RADIUS Network Policy add RADIUS Certificate for EAP-TLS

Add Entra ID Password Access Policy to RADIUS Network Policy

Now that we have added the IP addresses, the CAs, and the server certificate, we can add the access policies. Access policies define the conditions under which a user or device can connect to your network. Each policy can have multiple access policies and they are checked in the order they are sorted.

  1. You will see an empty new access policy, under the red “No Access Policies” text. EZRADIUS Cloud RADIUS Network Policy Access Policies
  2. Enter the name of the access policy. This is just for your records. In this example I will set our RADIUS server as if it was for a school, so I will name the access policy “Students”. EZRADIUS Cloud RADIUS Network Policy Access Policies for Students
  3. For this policy we only want to enable EAP-TTLS, with Entra ID credentials, so we will select the “Enable Password Authentication” checkbox and then click “Enable Identity Provider (IDP) Delegation”

    When you enable IDP Delegation, EZRADIUS will disable PEAP-MSCHAPv2 and PAP since they are not compatible with IDP Delegation.

    Entra ID Authentication with EZRADIUS The Best Cloud RADIUS
  4. In this specific case, we will leave the rest of the certificate settings as default, but you can change them if you need to. here is s a video on how to configure the certificate settings
  5. Next we can fine tune the authorization for this specific policy by enabling Entra ID Group Membership requirement. To do this click on “Check Group Membership” EZRADIUS Cloud RADIUS Network Policy Access Policies for Entra ID users with Entra ID Group Membership Check

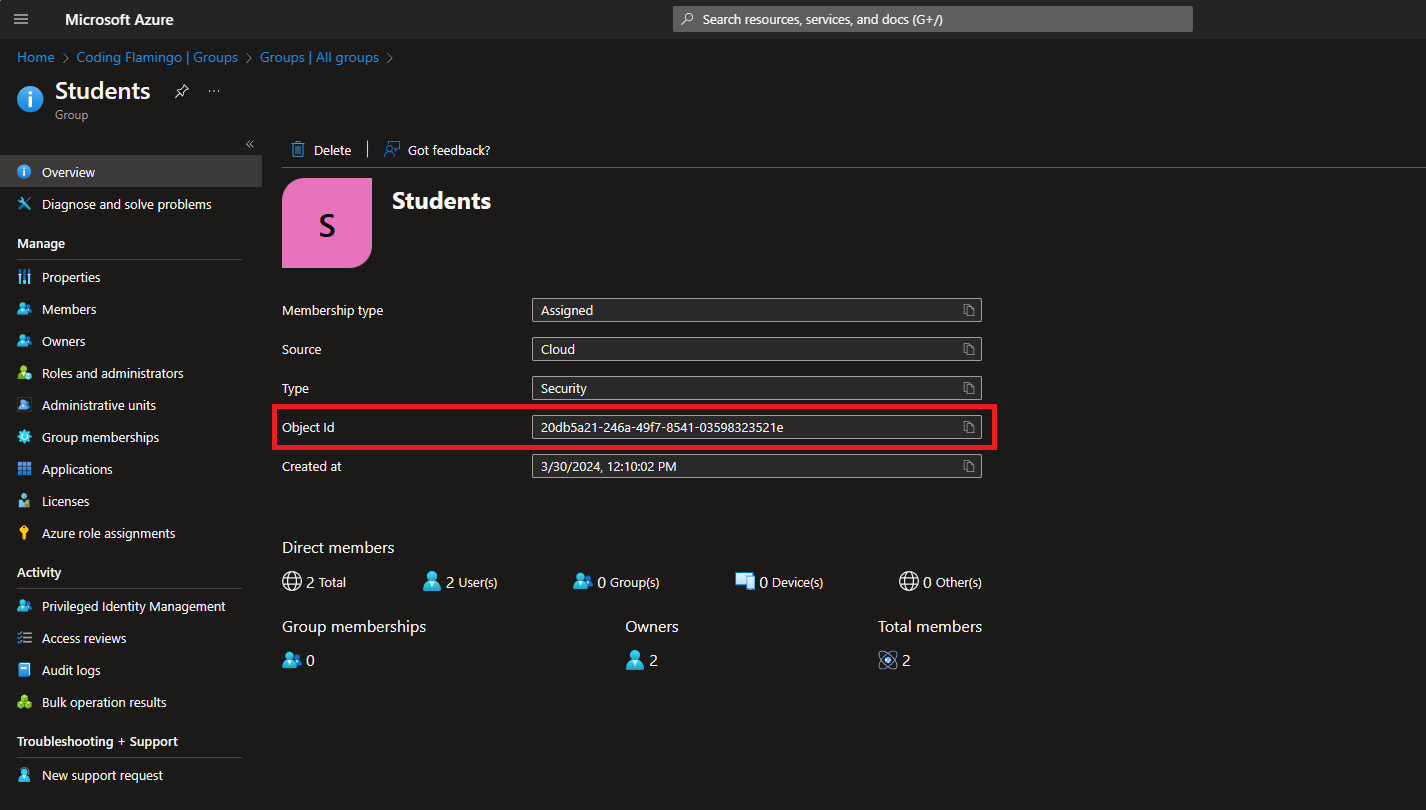

  6. Enter the Group Name that you want to check for membership in the “Group Name” field. EZRADIUS Cloud RADIUS Network Policy Access Policies for Entra ID users with Entra ID Group Membership Check
  7. By default, EZRADIUS will not assign a VLAN to the user, but you can enable VLAN assignment by selecting “Assign Static VLAN” from the VLAN Management Dropdown and entering the VLAN ID you want to assign to the user. EZRADIUS Cloud RADIUS Network Policy Access Policies for Students EAP-TLS policy with Static VLAN Assignment
  8. Once you have configured the access policy, click on “add policy” At the top of the access policy. EZRADIUS Cloud RADIUS Network Policy Access Policies for Students EAP-TLS policy with Static VLAN Assignment

Advanced Settings

While most of the settings are already set up for you, there are some advanced settings that you can configure to further customize your network policies. These settings are optional and can be used to further refine the access policies.

How To Enable MAC Authentication Bypass

If you want to enable MAC Authentication Bypass, you can do so by checking the “Enable MAC Authentication Bypass” checkbox. This will allow devices to connect to the network without a certificate if they have a MAC address that is in the MAC address list. You can add MAC addresses to the list following this guide EZRADIUS Enable MAC Address Bypass

How To Enable OCSP Checking

EZRADIUS check CRLs (Certificate Revocations Lists) by default, if in addition to CRLs you want to check OCSP, you can check the “Enable OCSP” checkbox. you can read more about the difference between CRL and OCSP here

Matching Attributes in Request Such as SSID

By adding attributes to this setting, the access policy will only be passed if the router or access point sends the denoted attributes to the EZRADIUS server. Below are the descriptions and use cases for matching the supported attributes:

  • Calling-Station-ID: Usually set-up to contain the SSID of the network or the MAC address of a device when carrying out MAC-Authentication-Bypass
  • NAS Identifier (NAS-ID): Usually set-up to contain the SSID of the network or the MAC address of a device when carrying out MAC-Authentication-Bypass

Send Attributes in Accept

By adding attributes to this setting, an authentication request that matches with the following access policy will send the denoted attributes in the Access-Accept response sent to the router or access point. The Access-Accept response is sent when the identity in the authentication request is authorized. Below are the descriptions and use cases for the supported attributes that can be sent on success:

  • Filter-Id: Can be used to assign a pre-defined access control list (ACL) to the user that successfully authenticates with the access policy
  • Cisco-AVPair: Cisco-specific attribute

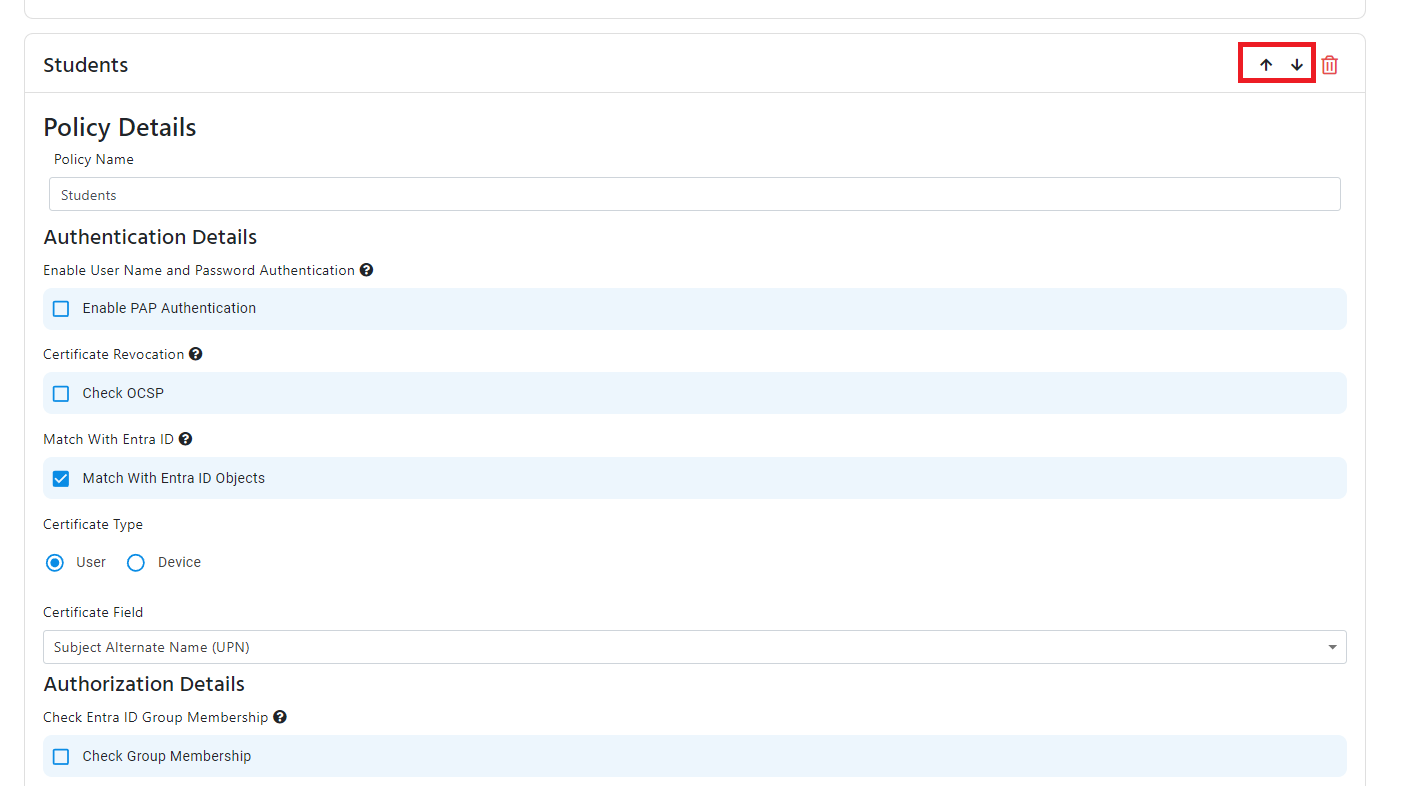

Access Policy Order

The access policies are checked in the order they are sorted, you can change the order of the access policies by clicking on the up and down arrows on the right side of the access policy. EZRADIUS Cloud RADIUS Network Policy Access Policies for Students EAP-TLS policy with Dynamic VLAN Assignment

  1. Once your policy is ready, click “Save Changes” at the top to save the policy changes. EZRADIUS Cloud RADIUS Network Policy Access Policies Save Entra ID Policy

Entra ID Conditional Access Policies

If you are using Entra ID conditional access policies that require multi-factor authentication, you will need to add an exception to EZRADIUS IP addresses, allowing us to bypass the conditional access policies to authenticate the user. You can find the list of EZRADIUS outbound IP addresses below.

Instance Outbound IP Addresses
USA East 52.15.112.49/32
USA West 44.245.68.87/32
EU 18.198.61.96/32
South East Asia 13.250.66.174/32
Australia 54.153.245.161/32
Australia 16.26.62.227/32

How to Add EZRADIUS IP Addresses to Trusted IP Addresses in Entra ID Conditional Access Policies

  1. Go to your Conditional Access Policies in Entra ID.

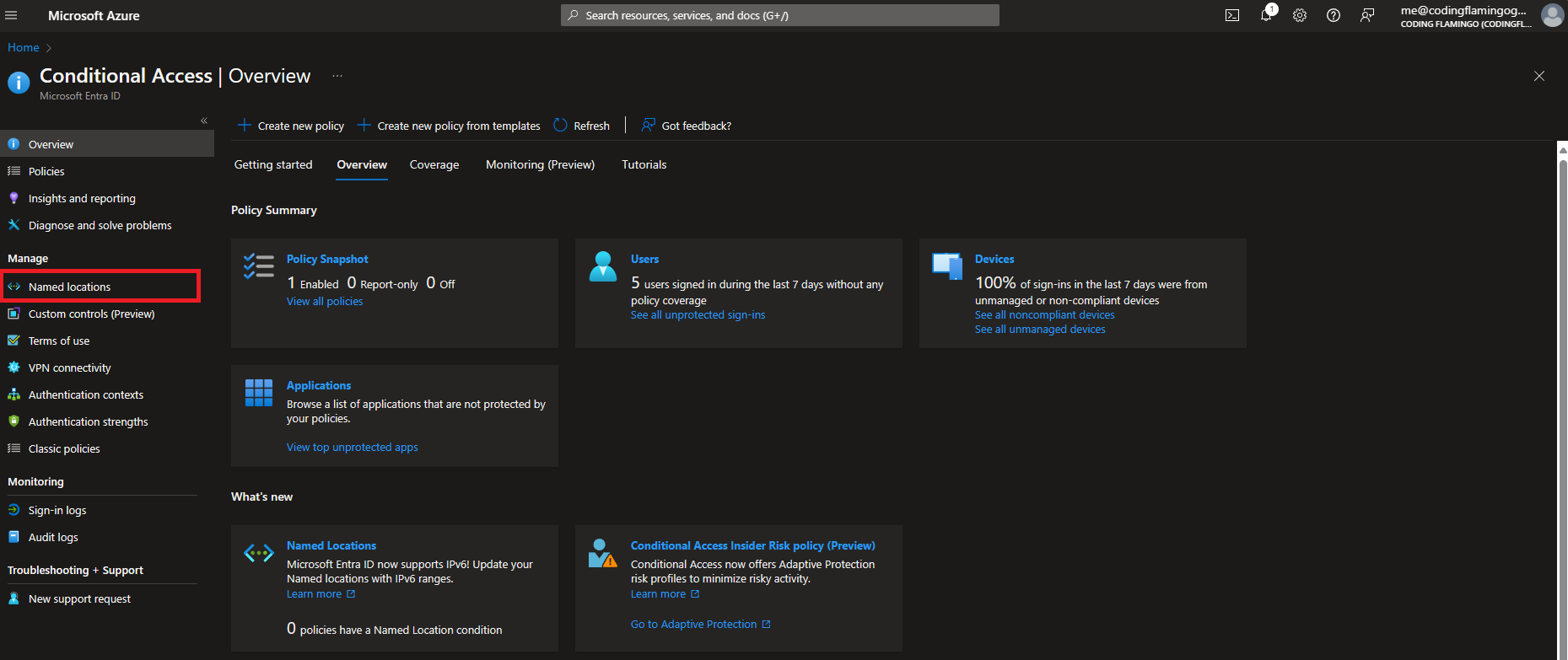

  2. Select Named Locations. Entra ID Conditional Access Policies Trusted Networks

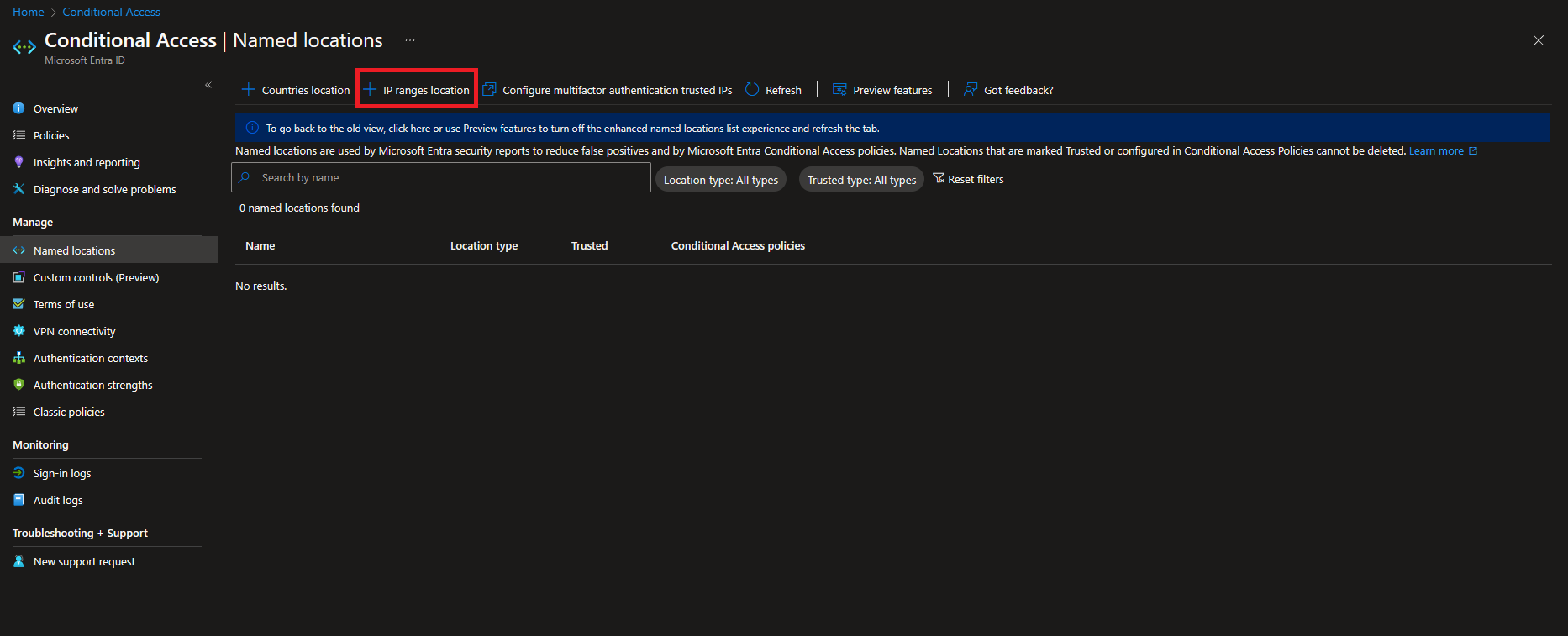

  3. Click on IP Ranges location at the top. Entra ID Conditional Access Policies Add Trusted Networks
  4. Enter the Name of the IP Range, for example, “EZRADIUS”.
  5. Enter the IP Addresses for your EZRADIUS instance from the table above (If you have a private instance your account engineer will provide you your outbound addresses).

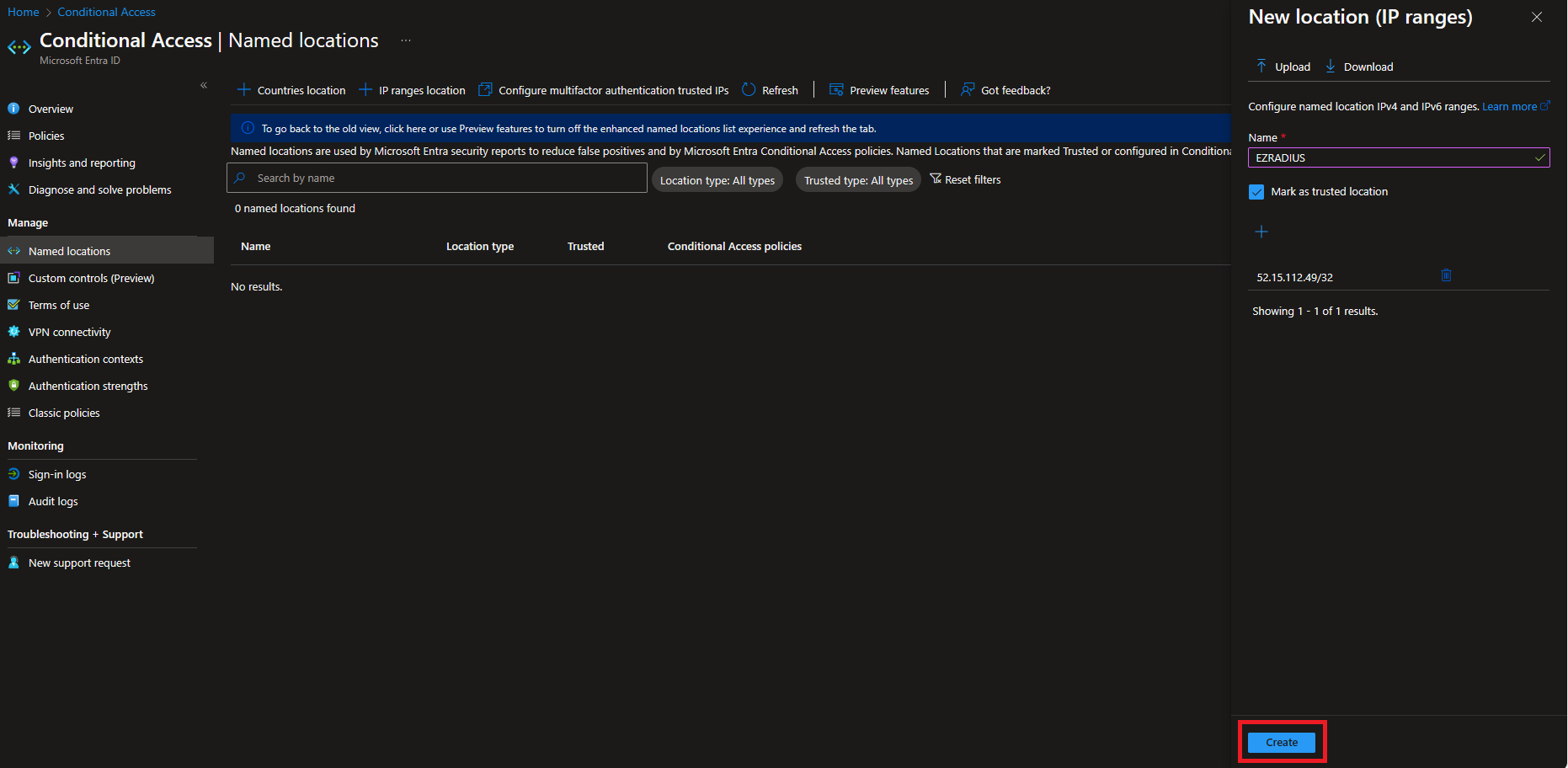

  6. Click “Create”. Entra ID Conditional Access Policies Add Trusted Networks
  7. Go back to your Conditional Access Policies.
  8. Find your Conditional Access Policy that requires multi-factor authentication.
  9. Click on “Conditions” and then “Locations”.
  10. Click on “Exclude” and then “Selected networks and locations”.

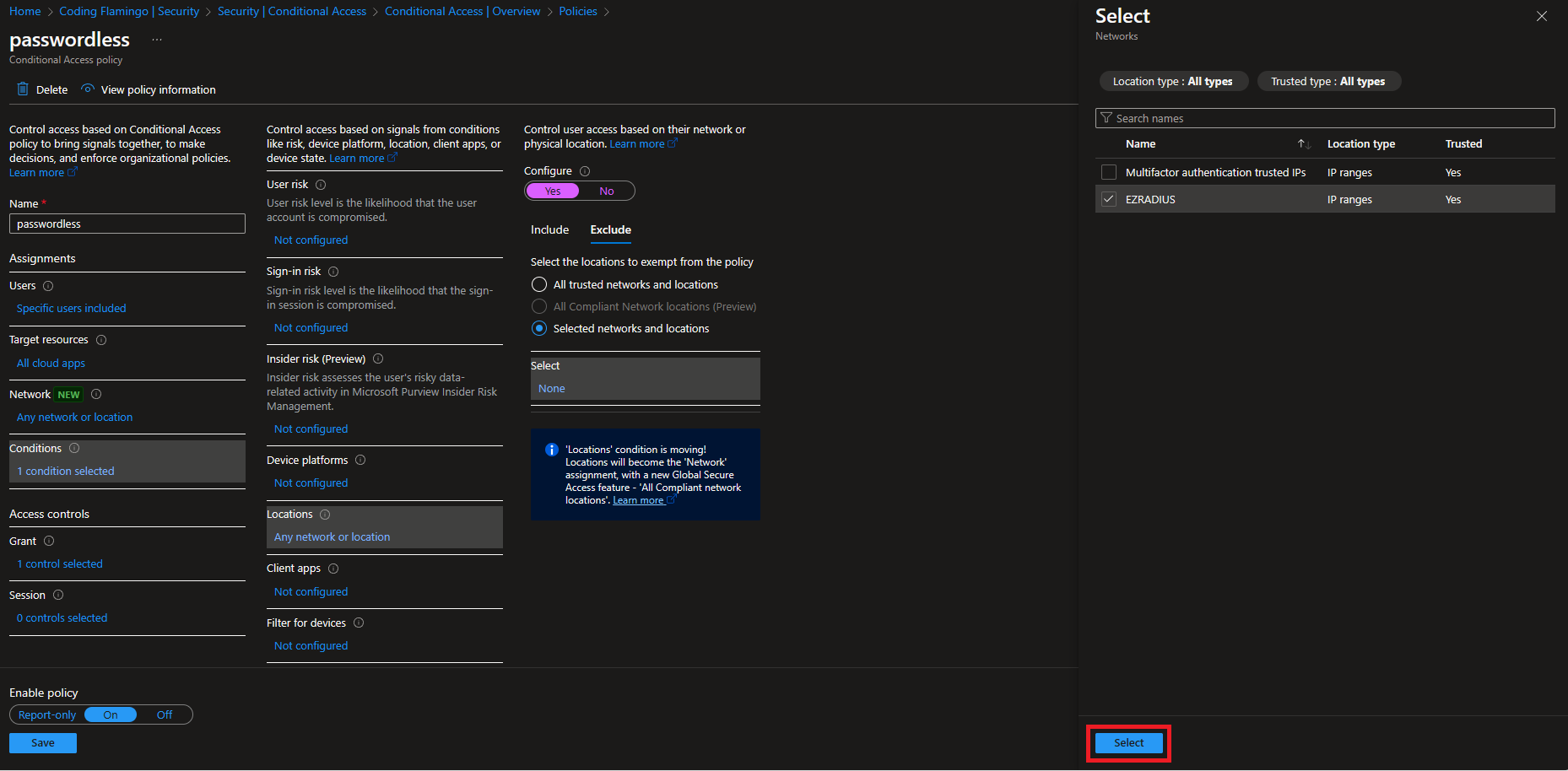

  11. Select the location you created for EZRADIUS. Entra ID Conditional Access Policies Add Trusted Networks

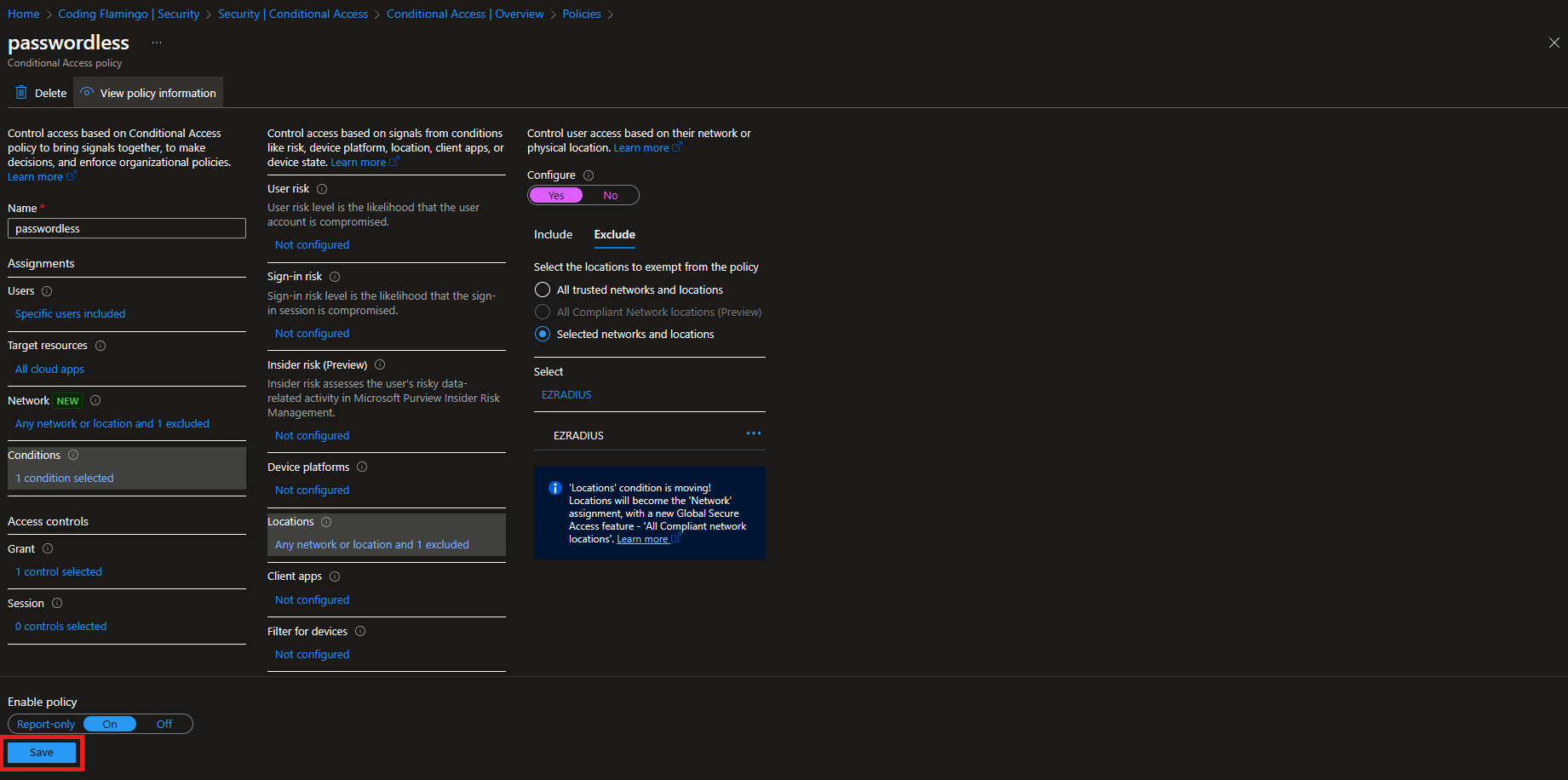

  12. Click “Save” Entra ID Conditional Access Policies Add Trusted Networks

How To Troubleshoot Entra ID Cloud RADIUS Password Authentication Not Working

For Entra ID Password Authentication to work, the PAP over EAP-TTLS protocol must be used. Some devices by default will try to use PEAP-MSCHAPv2, which is not compatible with Entra ID Password Authentication due to Entra ID not Supporting MSCHAPv2. To resolve this, you have two options, you can either configure the device to use EAP-TTLS with PAP or you can enable self service user management in EZRADIUS where the user can set up their own password and use the EZRADIUS self service portal to manage their password.
